Manufactured from 0.9mm CR4 substrate steel - A0 size. Finished in RAL7035 Pale Grey
Plan Chest, 8 deep drawer unit complete with top and plinth. Ref BSS-50
Overall dimensions 1367 w x 947 f to b x 875mm high.
Internal drawer dimensions 1257 w x 913 f to b x 65mm deep.
Drawers mounted on ball bearing extension slides and fitted rear hood.
Chrome handle and label holder fitted to drawer front.
Fitted lock.
Plan Chest, 12 shallow drawer unit complete with top and plinth. Ref BSS-52
Overall dimensions 1367 w x 947 f to b x 875mm high.
Internal drawer dimensions 1257 w x 913 f to b x 37mm deep.
Drawers mounted on ball bearing extension slides and fitted rear hood.
Chrome handle and label holder fitted to drawer front.
Fitted lock
Extension Drawer Units, for stacking on top of Plan Chests
Extension Drawer Unit, 8 deep drawers (without top and plinth). Ref BSS-54
Finished Goosewing Grey for use with Plan Chests ref. BSS-50 and BSS-52.
Extension Drawer Unit, 12 shallow drawers (without top and plinth). Ref BSS-56
Finished Goosewing Grey for use with Plan Chests ref. BSS-50 and BSS-52
NB: Height of double stacked units (including plinth) 1580mm
Note: A combination of deep and shallow drawers may be fitted into one carcass:
Plan Chest, 9 drawer unit complete with top and plinth. Ref BSS-67
Overall dimensions 1367 w x 947 f to b x 875mm high.
Comprising 3 x shallow drawers, internal drawer dimensions 1257 w x 913 f to b x 37mm deep, and
6 x deep drawers, internal drawer dimensions 1257 w x 913 f to b x 65mm deep.
Drawers mounted on ball bearing extension slides and fitted rear hood.
Chrome handle and label holder fitted to drawer front.
Fitted lock.

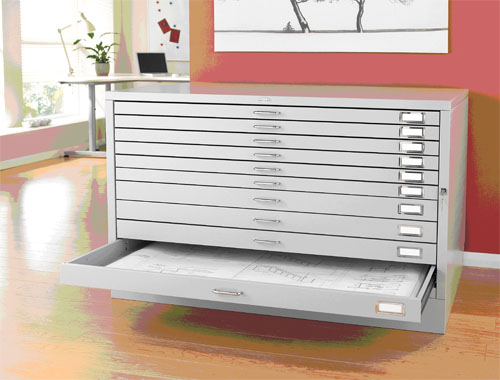

Plan Chest, 10 drawer unit complete with top and plinth. Ref BSS-65
Overall dimensions 1367 w x 947 f to b x 875mm high.
Comprising 6 x shallow drawers, internal drawer dimensions 1257 w x 913 f to b x 37mm deep, and
4 x deep drawers, internal drawer dimensions 1257 w x 913 f to b x 65mm deep.
Drawers mounted on ball bearing extension slides and fitted rear hood.
Chrome handle and label holder fitted to drawer front.
Fitted lock.
A1 Plan Chest, 8 drawer unit complete with top and plinth. Ref BSS-65/A18E/A18I
Overall dimensions 1019 w x 700 f to b x 875mm high.
Comprising 8 x deep drawers, internal drawer dimensions 909 w x 666 f to b x 65mm deep.
Drawers mounted on ball bearing extension slides and fitted rear hood - BSS-65/A18I
Chrome handle and label holder fitted to drawer front. Fitted lock BSS-65/A18E
ACCESSORIES AND COMPONENTS
Slot in Drawer Dividers for use in deep drawers, 400 long x 60mm high.
Finished Grey only - Ref BSS-62
Slot in Drawer Dividers for use in shallow drawers, 400 long x 30mm high.
Finished Grey only - Ref BSS-63
Front Inner Drawer Flap, for use with all drawers. Ref BSS-64
Plan Chest Top only. Ref BSS-58
Plan Chest Plinth only. Ref BSS-60
|
